Logo Printed Ntag203 NFC Sticker For Payment

Product Code: Ntag203 NFC tag-hhl-00034
Availability: In Stock

Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: OEM
  • Model Number: Ntag203 NFC tag-hhl-00034
  • Commodity: nfc payment sticker
  • Standard: ISO14443A
  • Material: Paper, PET, PVC
  • Chip option: Ntag203
  • Frequency: 13.56 MHz
  • Read distance: 2~ 10 cm
  • Antenna: PET+Alu
  • Size: 25 mm, 30 x 15 mm,etc
  • Logo Print: Available
  • Production time: 6-7days often

Packaging & Delivery

Packaging Details: 1000 pcs/roll or single tag package
Delivery Detail: 7~10 days

Specifications

nfc payment sticker
1.PET/ Paper/ PVC material
2.waterproof,anti-metal
3.logo and number printing..

Logo Printed Ntag203 NFC Sticker For Payment


-------------------------------------------------------------------------------------------------------------------

Material:PVC ,Paper,PET ,ABS

Size:Dia25mm ,25*25mm ,Dia30mm ,30*30MM etc.

Logo Printing or Blank

Adhesive:Normal sticker or 3M glue Sticker

Productiont ime:6-7days base on 5000pcs.

-------------------------------------------------------------------------------------------------------------------





-------------------------------------------------------------------------------------------------------------------



Ntag 203 chip Description



N X P Semiconductors has developed NTAG203 - NFC Forum Type 2 Tag compliant IC - to

be used with NFC enabled devices according to NFC Forum technical specifications and ,

according to NFC Forum recommendations or Proximity Coupling

Devices (PCD), according to ISO/IEC 14443A . The communication layer (RF

Interface) complies to parts 2 and 3 of the ISO/IEC 14443A standard. The NTAG203 is

primarily designed for NFC Forum Type 2 Tag applications (i.e. Smart Advertisement,

connection handover, Bluetooth simple pairing, WiFi Protected set-up, call request, SMS,

goods and device authentication and others).



-------------------------------------------------------------------------------------------------------------------

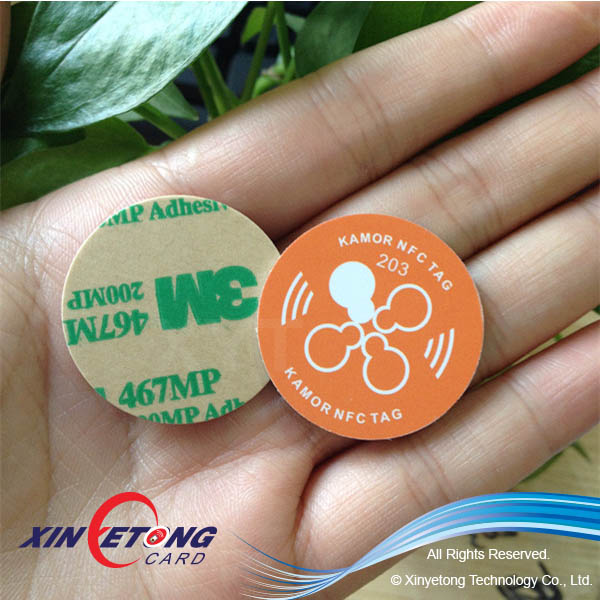

NFC Coin Tag with 3M sticker





-------------------------------------------------------------------------------------------------------------------

Features and benefits



1.1 RF Interface (ISO/IEC 14443A)

Contactless transmission of data and supply energy (no battery needed)

Operating distance: up to 100 mm (depending on field strength and antenna geometry)

Operating frequency: 13.56 MHz

Fast data transfer: 106 kbit/s

High data integrity: 16-bit CRC, parity, bit coding, bit counting

True anticollision

7 byte serial number (cascade level 2 according to ISO/IEC 14443-3)



1.2 EEPROM

168 bytes of total memory, divided in 42 pages (4 bytes each)

144 bytes of user r/w memory area, divided in 36 pages (4 bytes each)

Field programmable read-only locking function per page for first 64 bytes

Field programmable read-only locking function per block

32-bit user definable One-Time Programmable (OTP) area

16-bit counter

Data retention of 5 years

Write endurance 10000 cycles



1.3 NFC Forum Tag 2 Type compliance

NTAG203 IC provides full compliance to the NFC Forum Tag 2 Type technical

Specification and enables NDEF data structure configurations.



1.4 Security

Anti-cloning support by unique 7-byte serial number for each device

32-bit user programmable OTP area

Field programmable read-only locking function per page for first 512 bits

Read-only locking per block for rest of memory.



-------------------------------------------------------------------------------------------------------------------



-------------------------------------------------------------------------------------------------------------------------------------------------------------------



Packaging & Delivery



Packaging Detail:1000pcs in on  roll

Weight:1000pcs /1.0kg



Payment Term:Paypal.Western Union or T/T in advance






-------------------------------------------------------------------------------------------------------------------
