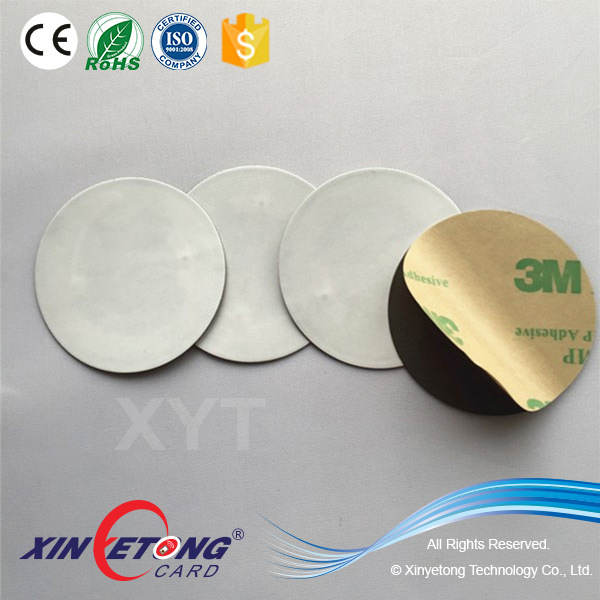

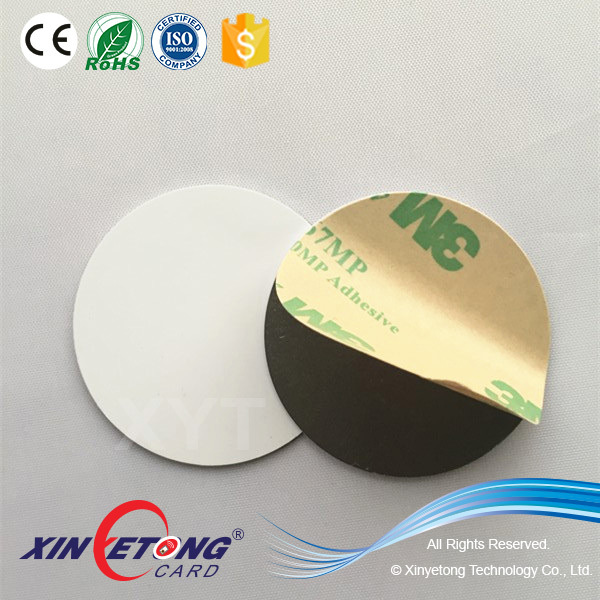

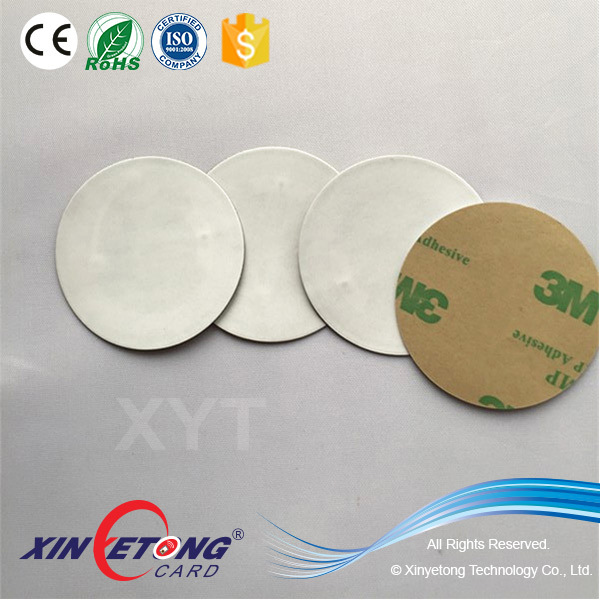

Dia40mm Anti-Metal Ultralight Chip NFC Sticker

Product Code: xyt-H-0003-Ultralight NFC Tag
Availability: In Stock

Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: xinyetong
  • Model Number: xyt-H-0003-Ultralight NFC Tag
  • type: anti-metal nfc sticker
  • logo: Digital Printing
  • design: custom
  • size: customize
  • material: paper,PET,PVC
  • surface: glossy/matte
  • chip: ultralight chip
  • application: NFC systerm
  • procotol: 14443a

Packaging & Delivery

Packaging Details: Carton: 48 cm x 22.5 cm x 14cm, 10 boxes/ carton for coin tags
Access control Device Dia40mm Anti-Metal Ultralight Chip NFC Sticker
Delivery Detail: 5-7 days after receive deposit for coin tag

Dia40mm Anti-Metal Ultralight Chip NFC Sticker

--------------------------------------------------------------------------------------------------------



Artwork:



B:Size: custom

C:Material: PVC,ABS,PET

D:Item:telecom cards, prepaid phone card, social security cards(SIN Card), bus card and netbar card, etc.

E:Application:

Financial systerm/ Telecom system/ Government system/E-wallet / Utility service system /Transportanion system / medicial system / organizations management system.etc





Feature of  Ultralight :



Mf RF interface ISO/IEC 14443 A

  1. Contactless transmission of data and supply energy (no battery needed)
  2. Operating distance up to 100 mm depending on antenna geometry
  3. Operating frequency of 13.56 MHz
  4. Data transfer of 106 kBs
  5. Data integrity of 16-bit CRC, parity, bit coding, bit counting
  6.  Anticollision
  7. 7-byte serial number in accordance with ISO/IEC 14443-3 cascade level 2
  8. Typical ticketing transaction time of < 35 ms
  9. Fast counter transaction time of < 10 ms

2.2 EEPROM:

  1. 512-bit, organized in 16 pages with 4 bytes per page
  2. Field programmable read-only locking function per page
  3. 32-bit user definable One-Time Programmable (OTP) area
  4. 384-bit user Read/Write area (12 pages)
  5. Data retention time of 5 years
  6. Write endurance 10000 cycles


ISO 14443A 13.56MHZ Topaz Anti-metal NFC sticker

=================================================================================================



Material: Paper, PVC,PET,Anti-metal layer White paper NFC sticker /ISO 14443A 13.56MHZ Anti-metal tag



Size: Dia25mm ,30mm ,35mm,25*25mm ,30*30mm ,etc



Samples:Free samples available,freight is paid by customer



Topaz512 chip Feature


For use in NFC Forum Tags/Smartposter/ Connection Handover/One-touch Setup applications as well as
general 13.56 MHz RFID applications
• Targeted for operation with NFC devices which work to ISO/IEC 18092 (NFCIP-1) and ISO/IEC 21481
(NFCIP-2)
• Designed to be compatible with the ISO/IEC 14443:2001, Parts 2 and 3
• ISO/IEC 14443 Type A modulation scheme
• Passive RFID tag operating in the unlicensed 13.56 MHz band
• Read and write (R/W) operation
• 8-byte read (READ8) and 8-byte write (WRITE8) commands
• Can be configured for One Time Programmable (OTP) and Write Once Read Many (WORM) operation
• Fast data communication rate of 106 kbps
• UID provision to enable collision detection by use of the Read UID (RID) command.
