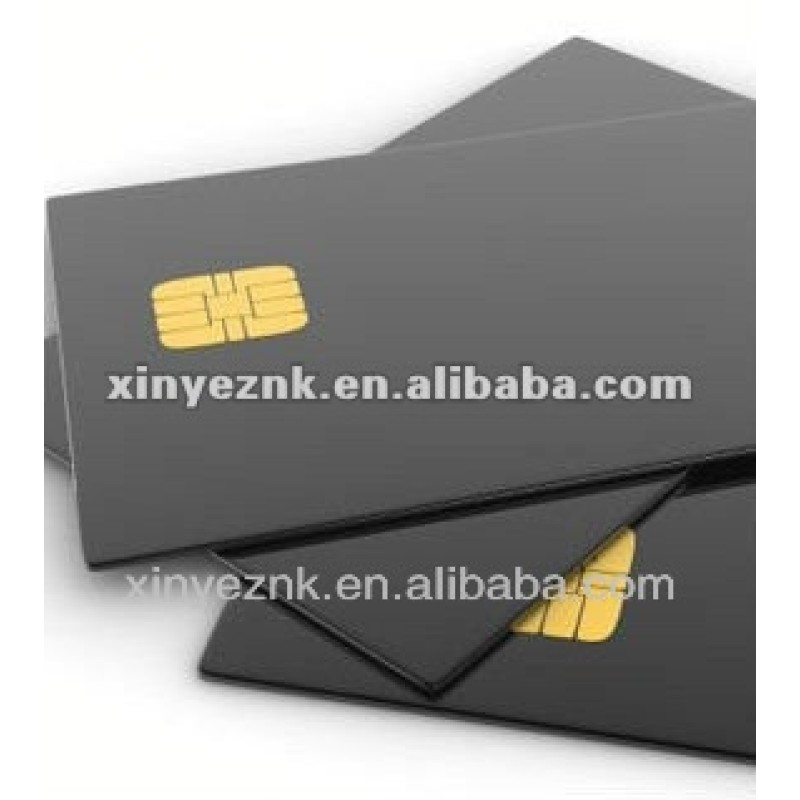

Contact dull polish IC card

Product Code: xyt-K-0026
Availability: In Stock

Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: OEM
  • Model Number: xyt-K-0026
  • Color: CMYK color
  • Dimension: 85.5*54.5*0.76mm or per customer require
  • Delivery: 5-7 days
  • Chip Types: SLE,FM and AT series

Packaging & Delivery

Packaging Details: 200pcs/white box,size:22*9*6cm,15box/carton,GW:1000pcs/6KGs
Delivery Detail: 5-7days after the receipt of the payment .

Specifications

Contact dull polish IC card:
1.Materail:PVC/ABS/PET
2.Thickness:0.84-1mm
3.Customized:design
4.Competitive price

Contact dull polish IC card:

1.Material: High quality PVC,ABS,PET

2.Finish: Matt,Gloss,Silk screen, UV  coated,transparent
a)Number printing :thermal transfer number,Ink jet number,laser number,embossing number
b)Bar code:13/39/128 format
c)Hot stamping: gold/silver/laser
d)Signature panel: gray/white/transparent
e)Others : hole punch ,peel-off protect film

3.Operating temperature:-35 °C+80°C(PVC card restrict to 50°C)

4.package:
a).200pcs/white box,15 boxes/carton
b). White box size:22*9*6cm, Carton size: 52.5*22.5*15cm
c). Gross Weight: 1.2kg/white box,18kg/carton

5.S 50Chip Application: Access control, Identify system,Check-in system,Property identification,Company all in one system, Park,Shopping mall,Safe guard system, Hospital etc.



We promise every card we offer can work well.



Contact IC chip

Siemens

SLE5542(4442)

1.256bit encryption card,can read data,write data and password,protect data and write password.

2. ISO 7816 Compliant pad locations

3. 256*8 bit EEPROM organization

4. byte-wise addressing

5. Irreversible byte-wise write protection of lowest 32 addresses (byte 0-31)

6. 32*1 bit organization of protection memory

7. 2-wire link protocol

8. Answer to reset according to ISO standard 7816-3

9. Programming time 2.5mS per byte for both erasing and writing

10. Minimum of 10000 write/erase cycles

11. Data retention > 10 years

12. Programmable Security Code (PSC)

13. Data write only after correct 3-byte PSC



SLE5528(4428)

1. ISO 7816 Compliant pad locations

2. 256*8 bit EEPROM organization

3. byte-wise addressing

4. Irreversible byte-wise write protection of lowest 32 addresses (byte 0-31)

5. 32*1 bit organization of protection memory

6. 2-wire link protocol

7. Answer to reset according to ISO standard 7816-3

8. Programming time 2.5mS per byte for both erasing and writing

9. Minimum of 10000 write/erase cycles

10. Data retention > 10 years

11. Programmable Security Code (PSC)

12. Data write only after correct 3-byte PSC

Shanghai Fudan

FM4442

1.256bit encryption card,can read data,write data and password,protect data and write password.(compatible SLE4442)1024*8 bit EEPROM organization

FM24C16: 16Kbit

FM4428: 1024bit encryption card,can read data,write data and password,protect data and password operation.(compatible SLE4428)

Shanghai Beiling

BL7442: 256bit

BL24C04: 4Kbit

ISSI

ISSI4442 : 256bit

ISSI24C16: 16Kbit

ISSI4428 : 8Kbit

ATMEL

AT24C01: 1Kbit(stop production)

AT24C02: 2Kbit

AT24C04: 4Kbit

AT24C16: 16Kbit

AT88SC102: 1Kbit

Contactless IC Chip module

Shanghai Fudan

F08

1. ISO/IEC14443-A

2. Non-contact data and energy transfer (no need Power)

3. Frequency: 13.56MHz

4. Communication baud: 106Kbit/s

5. Operating Distance:2.5-10CM(correlation with Antenna Size)

6. Encryption: M1standard

7. Processing time<100ms

8. 1024*8bitEEPROM

9. Flash Erase:100000 times

Shanghai Beiling

75R06 : 8Kbit

Philips

S50

1. ISO/IEC14443-A

2. Non-contact data and energy transfer (no need Power)

3. Frequency: 13.56MHz

4. Communication baud: 106Kbit/s

5. Operating Distance:2.5-10CM(correlation with Antenna Size)

6. Encryption: M1standard

7. Processing time<100ms

8. 8Kbit EEPROM

9. Flash Erase:100000 times

S70 :32Kbit

ATMEL

T5557/T5567

1. Frequency:125KHZ

2. 330bits EEPROM,

3. Operating Distance:3-10CM

4. Flash Erase:100000 times

5. Data hold time:10 years

T5557/T5567 : 30bit

Made in Taiwan

EM4100 (ID card)

1. 64bit EEPROM

2. Frequency:125KHZ

3. Operating Distance:2-15CM
