1K 2K 16K 64K memory contact smart card

Product Code: J-1K 2K 16K 64K memory contact smart card-012
Availability: In Stock

Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: OEM
  • Model Number: J-1K 2K 16K 64K memory contact smart card-012
  • Material: PVC, PET, ABS
  • Size: 85.5*54
  • Thickness: 0.84mm
  • Production craft: signature panel/scratch panel/numbering/ magnetic stripe
  • Surface finish: glossy/matte/frosted
  • Sample: free for you to test quality
  • MOQ: 500PCS
  • Protocol: ISO7816
  • Certification: ISO9001:2008
  • Printing: CMYK offset printing or silkprinting

Packaging & Delivery

Packaging Details: 1. 200 pieces/ box(White box: 22 cm x 9 cm x 6cm)
2. 15 boxes/ carton(Carton: 52.5 cm x 22.5 cm x 15cm).
3. Or customize box/ Carton, Gross weight can be calculated as follows: 6.5 kg/ 1000 pieces.
Delivery Detail: 5-7 days

Specifications

1K 2K 16K 64K memory contact smart card
1.1K 2K 16K 64K memory
2.Lowest factory price
3.fast delivery



1 Details



Contact Smart IC Card supplier with over 5 years experience, our aims at: Quality Prime, Punctuality, Service is Above All



Contact Smart IC Card, Chip Card



Contact smart cards are the size of a conventional credit card with a single embedded integrated circuit chip.



Application: Telephone calling, electronic cash payments, and other applications, and then periodically refreshed for additional use.



A)Material: PVC

Dimension: 85.5*54*0.84(+/-0.04)mm



B) Available Artwork

Magnetic stripe, embossing numbers, signature panel, silver/gold foil, hole punch, etc;



C) Chips Option:



ISSI IS23SC4442 7816-3 256byte

IS23SC4428 7816-3 1k byte

Siemens/Infineon SLE5542 7816-3 256byte

SLE4428 7816-3 1k byte

SLE4442 7816-3 256byte

SLE4418 7816-3 1k byte

Atmel AT24C01 7816-3 1k byte

AT24C02 7816-3 2k byte

AT24C04 7816-3 4k byte

AT24C08 7816-3 8k byte

AT24C16 7816-3 16kbyte

AT24C32 7816-3 32kbyte

AT24C64 7816-3 64k byte

AT88SC102 1k byte

AT88SC1604 16k byte

AT88SC1608 16k byte







2 Specification



Contact IC Chip module for options



Factory

Model number

Specification

Siemens

SLE5542(4442)

256bit encryption card,can read data,write data and password,protect data and write password.

ISO 7816 Compliant pad locations

256*8 bit EEPROM organization

byte-wise addressing

Irreversible byte-wise write protection of lowest 32 addresses (byte 0-31)

32*1 bit organization of protection memory

2-wire link protocol

Answer to reset according to ISO standard 7816-3

Programming time 2.5mS per byte for both erasing and writing

Minimum of 10000 write/erase cycles

Data retention > 10 years

Programmable Security Code (PSC)

Data write only after correct 3-byte PSC

SLE5528(4428)

ISO 7816 Compliant pad locations

1024*8 bit EEPROM organization

byte-wise addressing

Irreversible byte-wise write protection of lowest 32 addresses (byte 0-31)

32*1 bit organization of protection memory

2-wire link protocol

Answer to reset according to ISO standard 7816-3

Programming time 2.5mS per byte for both erasing and writing

Minimum of 10000 write/erase cycles

Data retention > 10 years

Programmable Security Code (PSC)

Data write only after correct 3-byte PSC

Shanghai Fudan

FM4442

256bit encryption card,can read data,write data and password,protect data and write password.(compatible SLE4442)

FM24C16

16Kbit

FM4428

1024bit encryption card,can read data,write data and password,protect data and password operation.(compatible SLE4428)

Shanghai Beiling

BL7442

256bit

BL24C04

4Kbit

ISSI

ISSI4442

256bit

ISSI24C16

16Kbit

ISSI4428

8Kbit

ATMEL

AT24C01

1Kbit(stop production

AT24C02

2Kbit

AT24C04

4Kbit

AT24C16

16Kbit

AT88SC102

1Kbit





 3 Why choose us?





 -Providing high quality pvc rfid card with competitive price

- Providing wide range products item

- Providing perfect after-sales service

- Keeping wealthy production experience

- Keeping advance production technology

- Keeping professional R&D capability



4 Product showroom



1 production crafts as below:

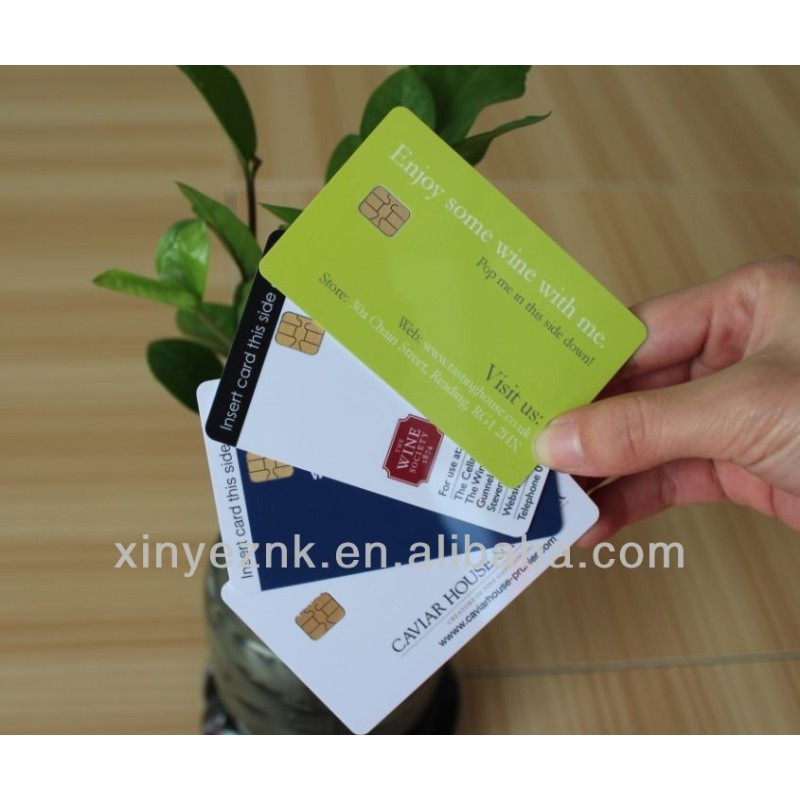

 2 product show:
